Products
Aluminum Pergola & Shade Systems
One factory for louvered pergolas, retractable pergolas and compatible outdoor shading structures. Standard colours are white, grey and black; custom colours are available.

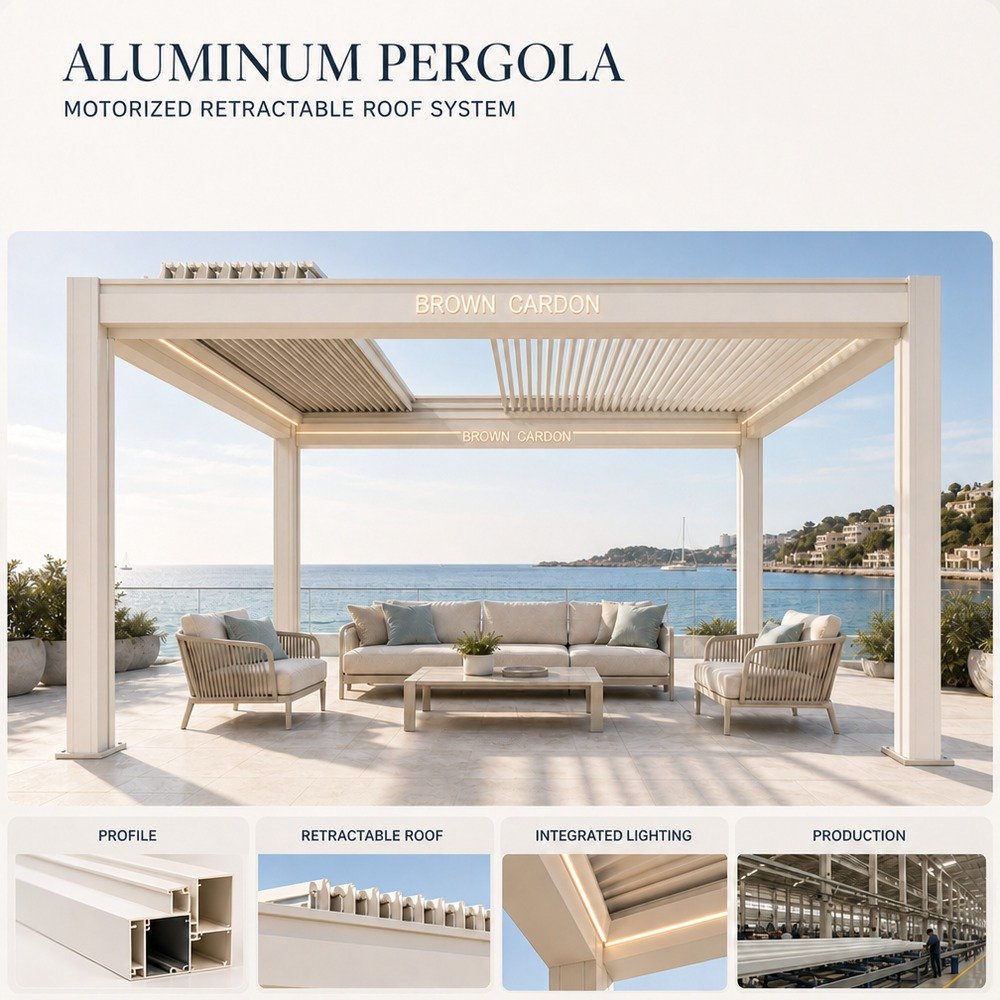

BC-172 Louvered Pergola
Adjustable louvered roof — tilt the blades to control sun, shade and airflow. Integrated LED lighting and side louver privacy panels available.
Retractable Roof Pergola
Retractable panels open the roof when you want sky, and close it when you do not. Suited to larger spans and poolside installations.

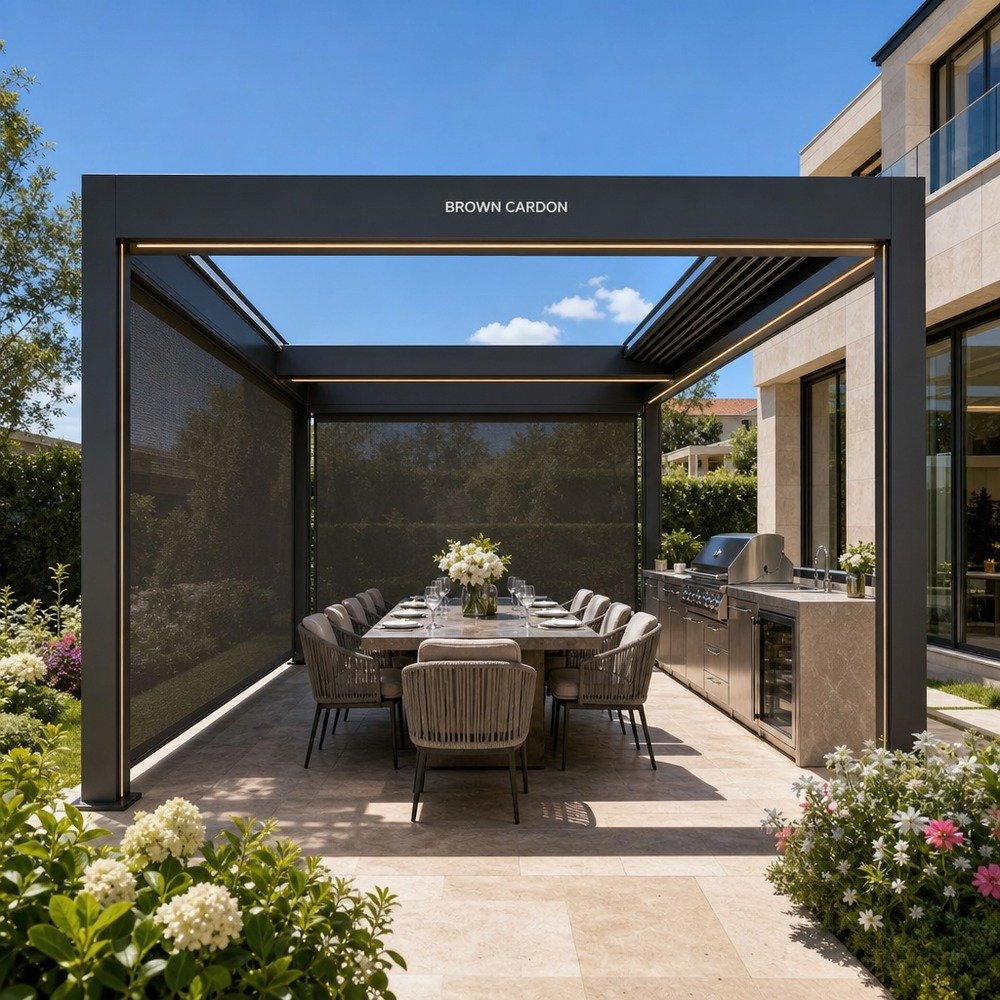

Zip Screen Enclosure
Optional retractable zip screens turn an open pergola into a sheltered outdoor room — wind, rain and privacy control for year-round use.
Sunrooms & Outdoor Shading
Aluminum sunroom and shading range for residential and commercial outdoor spaces, designed to match the same frame system.
Technical Specifications
Standard profile set. Dimensions can be adapted to your project within our manufacturing limits.
Frame
- Material: 6063-T5/T6 aluminum
- Louver blade: 210 × 122.5 mm
- Track / beam: 221 × 55 mm, wall thickness 2.0 mm
- Column: 122.5 × 58.5 mm, wall thickness 2.0 mm
Configuration
- Maximum size: 4 m width × 6 m length
- Colours: white / grey / black / custom
- Integrated LED lighting (optional)
- Side louver panels and zip screens (optional)
Details That Matter on Site
Frame sections are sized so the finished structure carries its own weight and integrates cleanly with glass, screens and lighting. Every order is pre-assembled in the factory before it is crated, which means fewer surprises during installation.
- Pre-assembled and function-tested before packing
- Plywood export crate with metal corner brackets and corrugated dividers
- Installation drawings and technical guidance supplied with overseas orders
- Spare parts and after-sales support available
Need a Specification or a Sample?
Send us your dimensions and drawings — we will confirm the suitable profile set and quote.
